Products - MICR ReaderOEM integration products and services
  Jump to:

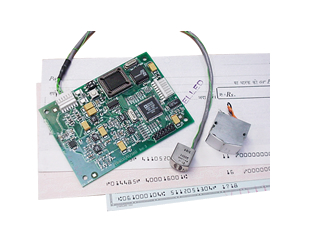

  A highly cost-effective OEM solution for organisations wishing to read MICR magnetically. We offer PCB options for cheque sorters, scanners and document processors.

Our PCB applications for cheque sorters, scanners and document processors offer:

MICR E13B or CMC7 recognition
Real-time decoding of characters
Can be configured for a wide document speed range between 10 and 150 IPS (0.25 to 3.8 m/s). Speed can be selected in software
DSP-based design gives high read rate and integrity
Serial RS232 interface for programming and data output
Can operate with a wide variety of read heads
Optional character position information can be provided for each character
Compact size: 98 x 70 mm
Technical support and advice available from MMD
Operates from a single 5V power supply

Further options

Various software options can be set at the factory to meet specific requirements
Remote mounting of read head up to 3m from recognition board
Combined CMC7 / E13B decoding
Higher document speeds

Specification Sheets are available to download below in Adobe Acrobat PDF format. Requires Acrobat Reader to view - download Acrobat Reader FREE NOW!

contact us
download specification sheet


Macon Management and Design Ltd: Unit 4, Quakers Coppice, Crewe, Cheshire, CW1 6FA, UK
Tel: 44 (0)1270 250142 | Fax: 44 (0)1270 583517 | Email: enquiries@maconmgt.co.uk
